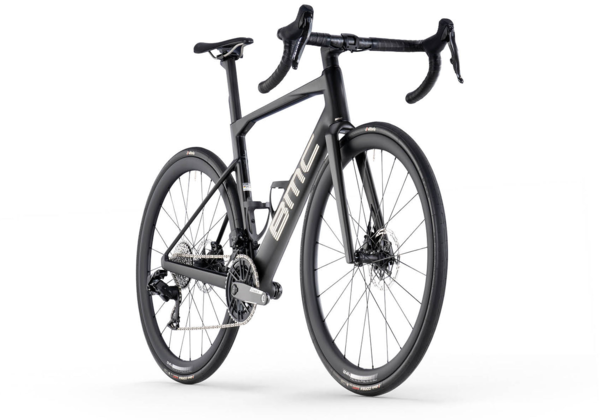

BMC Roadmachine 01 THREE

BMC Roadmachine 01 THREE
This item is currently not available.

Details

Engineered for long rides at high speed, this road bike features the newest SRAM Force AXS with Powermeter, premium carbon wheels, and Easton carbon handlebar.

Endurance Without Limits. The Roadmachine 01 THREE redefines endurance performance with a blend of speed, comfort, and all-road versatility. Built from our premium 01-grade carbon, it features advanced integration including internal cable routing, downtube storage, and a fully integrated rear light for added safety.

Sizes:
Size475154565861
Rider Height <160 158-174 172-180 178-186 184-192 >190
Reach 370 379 383 388 393 398
Stack 525 550 570 595 620 645
Bar Drop 125 125 125 125 125 125
Bar Reach 80 80 80 80 80 80
Bar Width 400 420 420 420 420 440
BB Drop 75 75 75 75 75 75
Crank Length 170 170 172.5 172.5 175 175
Fork Length 379 379 379 379 379 379
Fork Rake 50 50 45 45 45 45
Front Center 579 596 594 607 620 633
Head Tube 112 138 154 181 207 233
Head Tube Angle 71.4 71.4 72.2 72.2 72.2 72.2
Rear Center 415 415 415 415 415 415
Seat Angle 74.2 74.2 74.2 74.2 74.2 74.2
Seat Tube 414 461 488 508 529 550
Seatpost Length 280 320 360 360 400 400
Seatpost Offset 15 15 15 15 15 15
Standover Height 726 762 786 807 828 849
Stem Angle -12.5 -12 -12.5 -12.5 -12.5 -12.5
Stem Length 80 90 100 100 110 110
Top Tube 520 537 546 559 571 581
Trail 63 63 63 63 63 63
Wheelbase 982 1000 997 1010 1023 1036

Specs

Frame Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Fork Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance | ICS Technology stealth cable routing | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset (Size 47-51) 45mm offset (Size 54-61)
Rims CRD-321 Carbon | Tubeless Ready | 35mm [or] CRD-321 SL Carbon | Tubeless Ready | 35mm [or] CE 40 SL Carbon | Tubeless Ready | 40mm
Hubs CRD-321: TXC-712 & TXC-1425 Centerlock [or] CRD-321 SL: TXC-812 & TXC-2406 Center Lock [or] CE 40 SL: TXC-812 & TXC-2406 Centerlock
Tires Vittoria Corsa N.EXT | Tubeless | 32mm
Bottom Bracket SRAM Press Fit DUB
Crankset SRAM Force AXS (FC-FRC-P-E1)
Chainrings 46-33T
Shifters SRAM Force AXS (ED-FRC-E1)
Front Derailleur SRAM Force AXS (FD-FRC-E-E1)
Rear Derailleur SRAM Force AXS (RD-FRC-E-E1)
Cassette/Freewheel SRAM Force (CS-XG-1270-E1)
Chain SRAM Force (CN-FRC-E1)
Rotors SRAM Centerline X | Centerlock
Brake Levers SRAM Force AXS (ED-FRC-E1)
Handlebars Easton EC70 SL Carbon | 125mm drop, 80mm reach, 4° flare
Stem BMC ICS2 | Integrated Cockpit System Technology
Seatpost Roadmachine 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle Selle Italia Novus Boost Evo Superflow | TI316 Rail | 145mm
Extras SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1), Integrated Rear Light 25 | Roadmachine Bottle Cages | Storage Pouch

* Subject to change without notice.
